| Brand Name : | Crystro |
| Model Number : | CR20230505-02 |
| Certification : | SGS |
| Price : | 10-100 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100 pcs per week |
| Delivery Time : | 1-2 weeks |

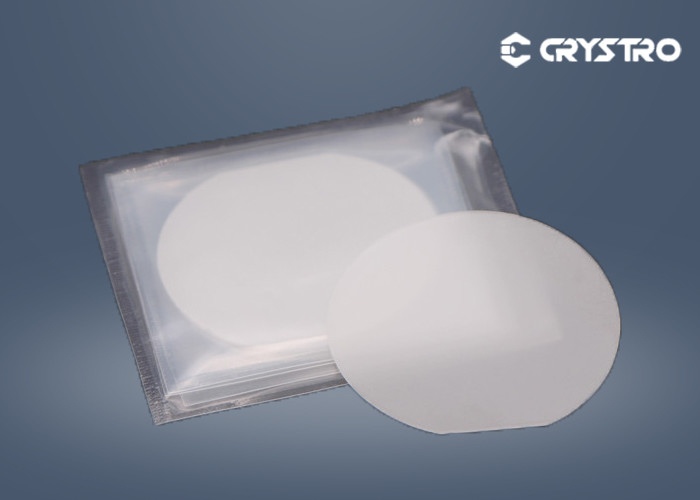

Gadolinium Gallium Garnet (GGG, Gd3Ga5O12) is a synthetic crystalline material of the garnet group, with good mechanical, thermal, and optical properties. It is typically colorless. It has a cubic lattice, a density of 7.08 g/cm3 and its Mohs hardness is variously noted as 6.5 and 7.5. Its crystals are produced with the Czochralski method.
Main Advantages:
Low optical losses (<0.1%/cm)
High thermal conductivity (7.4W m-1K-1).
High laser damage threshold (>1GW/cm2)
Main Properties:
| Chemical Formula | Gd3Ga5O12 |
| Lattic Parameter | a=12.376Å |
| Growth Method | Czochralski |
| Density | 7.13g/cm3 |
| Mohs Hardness | 8.0 |
| Melting Point | 1725℃ |
| Refractive Index | 1.954 at 1064nm |
CRYSTRO can offer:
| Orientation | [111] within ±15 arc min |
| Wave Front Distortion | <1/4 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.2mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 30 arc Seconds |
| Perpendicularity | < 15 arc min |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Apereture | >90% |
| Large Dimensions of Crystals | 2.8-76 mm in diameter |
|
|
