    Single Photon Emission Computed Tomography Spect High Thermal Conductivity Gagg Crystal

    Ask Lasest Price
    Brand Name : Crystro
    Model Number : CR210628-02
    Certification : ISO9001,RoHS,Reach
    Price : USD 20-200/pc
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 5000pcs per month
    Delivery Time : 4-5 weeks
    • Product Details
    • Company Profile

    Single Photon Emission Computed Tomography Spect High Thermal Conductivity Gagg Crystal

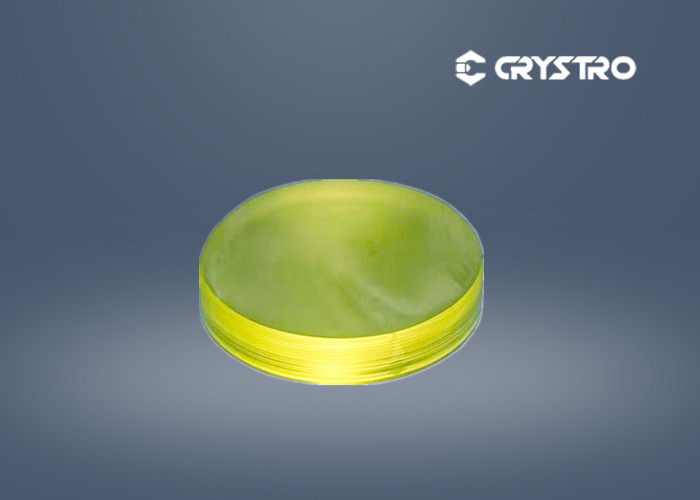

    Single Photon Emission Computed Tomography (SPECT) GAGG(ce) scintillator


    Ce: GAGG crystal exhibits stable physical and chemical properties, high thermal conductivity, and resistance to harsh environments. It exhibits excellent scintillating performance, for example, high scintillating efficiency, high light yield, and fast decay time. Ce: GAGG crystals are widely used in photomultiplier tubes, photoelectric counters, scintillation screens, and other devices. And used in high-energy particle detection and other fields, such as beta rays, gamma rays. Because of the excellent scintillation performance of Ce: YAG crystal, it is widely used in CT, scanning electron microscope SEM and other equipment. In particular, the linear response of GAGG crystals to gamma rays indicates that Ce: GAGG crystals are a promising medical imaging technology, such as X-ray photography, X-ray computed tomography (CT), and positron emission tomography (PET). ). Single crystal scintillators are often used in scanning electron microscopy (SEM).


    Anhui Crystro participate in the kinds exhibitions every year: Laser World of Photonics Munich, Shanghai, Photonics West in San Francisco, CIOE in Shenzhen, etc.
    CRYSTRO offers:
    crystals with

    High density
    High light yield
    Fast decay time
    Chemically inert
    High sensitivity
    High energy resolution


    Main Advantages:


    1. Relatively bright – emitting >50,000 photons/MeV

    2. Good absorbers with good stopping powers - density 6.63 g/cm³

    3. Broadly emitting with a 540nm peak

    4. Good Energy resolution

    Main Applications:


    γ-ray detection
    X-ray medical imaging
    Nuclear physics
    Nuclear radiation detection
    PET

    Main Properties:


    Chemical FormulaGdAlGaO₁₂
    Atomic Number (Effective)54.4
    Growth MethodCzochralski
    Density6.63g/cm3
    Mohs Hardness8
    Melting Point1850℃
    Thermal Expansion Coeff.TBA x 10‾⁶
