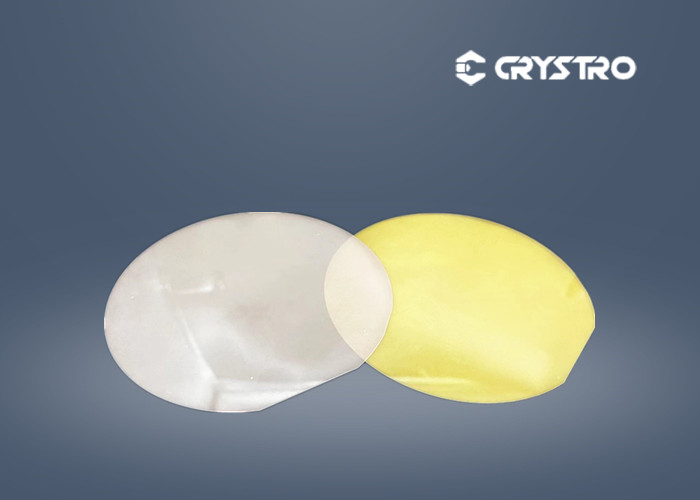

SAW Grade Doping Lithium Niobate Wafer MgO Er Fe Doped LT Optical Grade
LiNbO3 is a nonlinear optical grade crystal,MgO-doped LiNbO3 can
effectively increase the damage threshold of the LiNbO3 crystal.
Lithium Niobate(LiNbO3) crystals are widely used in optical
communication, information processing, integrated optics, image
storage, harmonic generation, frequency doubling devices,
parametric oscillations, frequency multiplication of 1064nm lasers
and quadruple frequency phase matching device etc.
Crystro provides:
Basic Properties of LiNbO3:
| Growth method | Czochralski method |
| Crystal structure | Trigonal system |
| Lattice constant | a=b=5.148Å c=13.863 Å |
| Melting point | 1250℃ |
| Curie temperature | 1142 ℃ |
| Density | 4.64 g/cm3 |
| Mohs Hardness | 5 |
| Spectral transmission range | 0.4-2.9um |
| Refractive index | No=2.286 ne=2.203 (632.8nm) |
| Nonlinear coefficient | D33=34.45, d31=d15=5.95, d22=13.07 (PMV-1) |
| Electro-optic coefficient | γ13=8.6,γ22=3.4,γ33=30.8,γ51=28.0,γ22=6.00(pmv-1) |
| Spectral transmission range | 370 - 5000nm >68% (632.8nm) |
| Thermal expansion coefficient | A11=15.4 x 10-6/k, a33=7.5 x 10-6/k |
Crystro can offer:
| Material | 3" 4" 6" 8" LN wafer (Saw/Optical grade) |
| Orientation | X / Z / Y41° / Y64° / Y128° / YZ / YX or Customized |
| Curie Temp | 1142°C±3°C |
| Doped with | Er, MgO, single or double doped available |
| Surface finish | single or double sides polish (DLP/SLP/ SSP/DSP all available) |
| Thickness | 0.18/0.25/0.35/0.50/1.00 + mm |
| TTV | < 1~5µm |
| BOW | ± (25µm ~40um ) |
| Warp | <= 35µm |
| LTV (5mmx5mm) | <1.5 um |
| PLTV(<0.5um) | ≥98% (5mm*5mm) with 2mm edge excluded |
| Edge | Compl't with SEMI M1.2@with GC800# .regular at C typed |
| Orientation flats | available, per request |
| Polished side Ra | Roughness Ra<=5A |
| Back Side Criteria | Roughness Ra:0.5-1.0µm GC#1000 |
| Edge Rounding | Compliant with SEMI M1.2 Standard/refer to IEC62276 |
| Cracks, saw marks, stains | None |
|
|
