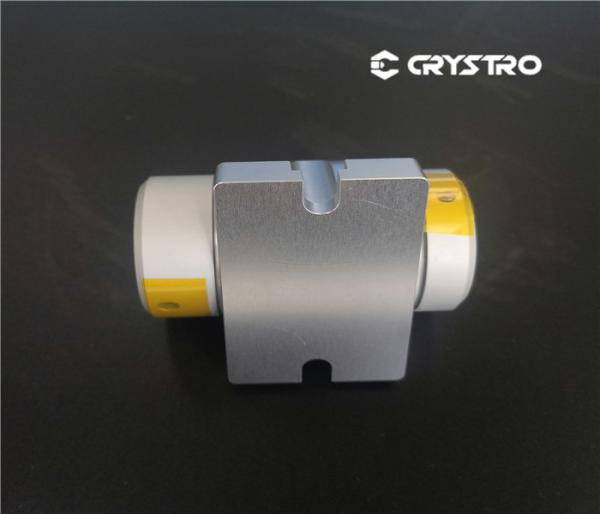

Free Space Customized Faraday Isolator 3mm-12mm
Customized Free Space Optical Isolator
Our free-space optical isolator (Faraday isolator) and Faraday rotator selection includes a wide range of wavelengths, from 400nm-1064nm , with typical isolation as high as 40 dB (single stage), and 75 dB (dual stage). We can offer a broadband optical isolator as required also single point wavelength. Most of our optical isolators are available with a choice of low, medium or high power capability.
Applications:
Maintain the light's linear polarizaton
Avoide deleterious effects of back reflectons in laser diodes
Eliminate instability in amplified laser systems caused by ASE
Reduce Nd and Yb oscillations from ASE created by amplifiers
Features:
Specifications:
| UV | VIS | NIR | IR | |
| Center Wavelength | 355nm | 405-980nm | 1030,1064nm | 1319,2000,4500nm |
| Operating Wavelength Range | ≥±10nm | ≥±10nm | ≥±15nm | ≥±10nm |
| Peak Transmission | >93% | >90% | >92% | >90% |
| Peak Isolation | >35dB | >35dB | >30dB | >35dB |
| M2 Degradation | <10% | <10% | <10% | <10% |
| Clear Aperture | 3,4mm or others | 3,4mm or others | 2,3,4,5,8,10,12 or others | 3,4mm or others |
| Optical Power(Average) | 1,5,10W or Specify | 10,30,50W or Specify | 10,30,50,100W or Specify | 10,30,50W or Specify |
| Damage Threshold | 3.5J/cm2@ 10ns | 3.5J/cm2@ 10ns | 10J/cm2@ 10ns | 5J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ | |||
| Tunable Temperature Range | 10-30℃ | |||
|
|
