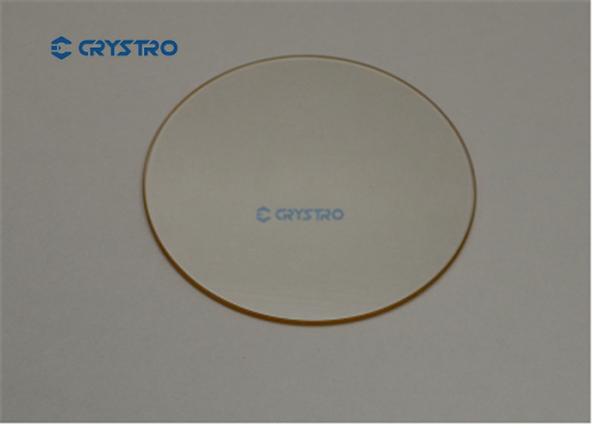

LSAT Single Crystal Substrates For Sale
(La,Sr)(Al,Ta)O3, LSAT is a relatively mature non-crystalline perovskite crystal. It has a perfect match with high temperature superconductors and various oxide materials. During a large number of practical researches, it was found that LSAT is promising to replace lanthanum aluminate (LaAlO3) and barium titanate (SrTiO3) for giant magnets and superconducting devices.
We supply (La,Sr)(Al,Ta)O3, LSAT substrate in various size and
orientation, Welcome to send us a inquiry for price and
specification of LSAT substrate.
| The main performance parameters | |
| Growth method | Czochralski method |
| Crystal structure | Cubic |
| Lattice constant | a = 3.868 A |
| Melting point (℃) | 1840 |
| Density | 6.74 (g / cm 3) |
| Hardness | 6.5 (mohs) |
| Permittivity | 22 |
| Thermal expansion coefficient | 10 x 10 -6 |
| Color and Appearance | Colorless to light brown, without crystal-twin |
| Standard Size | 10x3mm, 10x5mm, 10x10mm, 15x15mm, 20x15mm, 20x20mm, |
| Ф15mm, Ф20mm, Ф1"(25.4mm), Ф2"(50.8mm) | |
| Standard Thickness | 0.5mm, 1.0mm |
| Polishing | Single or double side polished |
| Crystal orientation | <100>, <110>, <111> ± 0.5 º |
| Ra: | ≤ 5Å (5μm × 5μm) |
| Package | 100 clean bag, 1000 clean room |
|
|
