    AR Coating Passive Q Switches Cr4+ Yag Laser Rod For Beauty Laser Machine

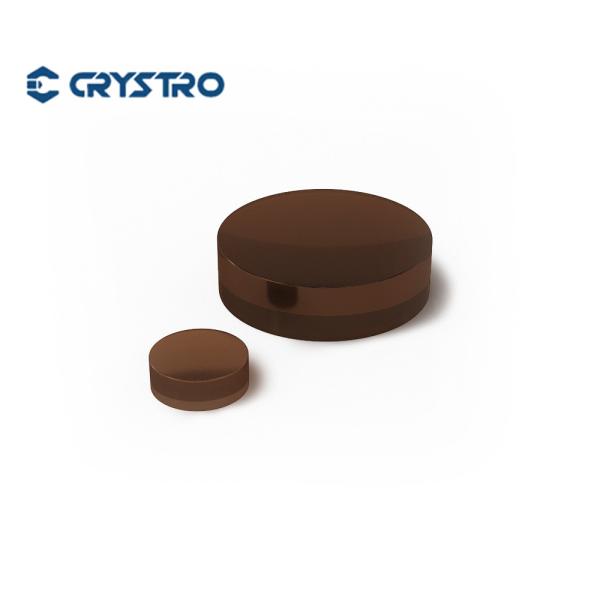

    Cr4:YAG Passive Q-Switch Crystals

    Cr4+:YAG crystals have several advantages when compared to traditional Passive Q-switching choices such as organic dyes and colour centres materials. Crystal Passive Q-switch is preferred for simplicity of manufacturing and operation, low cost, and reduced system size and weight. Cr4+:YAG is chemically stable, UV resistant and it is durable. Cr4+:YAG will operate over a wide range of temperatures and conditions. The good thermal conductivity of Cr4+:YAG is well suited for high average power applications.


    Main features

    * High damage threshold of 500-1000 MW/cm2
    * High chemical stability and reliability
    * Long life time and good thermal conductivity
    * Compact passive Q-Switch
    * Being easy to be operated

    Application examples

    * Passively Q-switched lasers for laser rangefinders, LIDAR and LIBS systems
    * Laser systems where short pulses are required.

    Main Properties:


    Diameter6.35 mm
    0 mm / +0.05 mm
    Typical Length2 mm to 10 mm
    Parallelism30 arc-sec. max
    Flatnessλ/2 at 632 nm Max.
    Refractive Index1.82 at 1.064µm
    Standard Optical Densities0.40 +/- 10%
    0.50 +/- 10%
    0.60 +/- 10%
    1.00 +/- 10%
    Saturation Fluencenear to 0.5 J/cm2
    Recovery Time8.5 µs
    Repetition Rate> 30 Hz
    AR coating0.3% per surface
    Damage Threshold> 500 MW/cm2
    Chemical FormulaY3Al5O12:Cr4+
    Orientation<111 > cubic
