ANHUI CRYSTRO CRYSTAL MATERIALS CO., LTD. INNOVATOR FOR MAGNETO OPTICAL CRYSTALS
7 Years
| Ask Lasest Price | |
| Brand Name : | Crystro |
| Model Number : | CR201201-01 |
| Certification : | SGS/COC |
| Price : | $1000-$2000 |
| Payment Terms : | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability : | 1000pcs/month |
| Delivery Time : | 2-4 weeks |

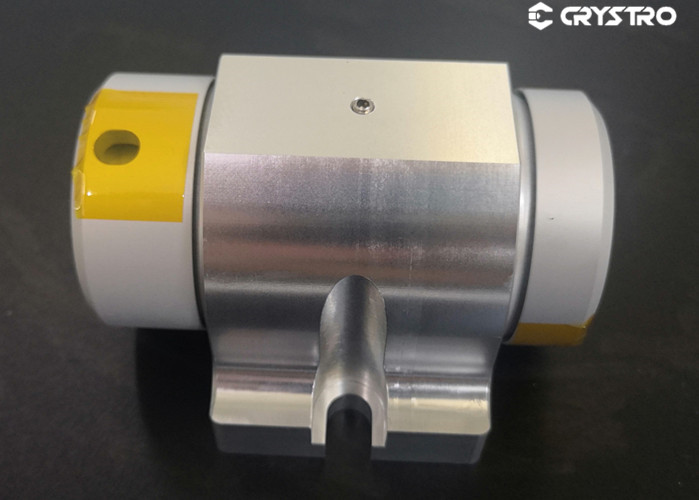

1064nm small size Free Space Faraday Isolators
Polarization Free space isolators are used in the high-speed optical transmitter or other pump laser which need to isolate the backward light. The isolators offer excellent performance with high isolation and low insertion loss. Available in single stage or semi-double stage options are centered at 1310nm, 1490 or 1550nm. The free space isolators can offer a range of clear aperture diameters from 0.40mm to 1.5mm as standard. Packaging options include square round or U shaped housings.
Features:
Applications:
Maintain the light's linear polarizaton
Reduce Nd and Yb oscillations from ASE created by amplifiers
Avoide deleterious effects of back reflectons in laser diodes
Eliminate instability in amplified laser systems caused by ASE
Specifications:
| UV | VIS | NIR | IR | |
| Center Wavelength | 355nm | 405-980nm | 1030,1064nm | 1319,2000,4500nm |
| Operating Wavelength Range | ≥±10nm | ≥±10nm | ≥±15nm | ≥±10nm |
| Peak Transmission | >93% | >90% | >92% | >90% |
| Peak Isolation | >35dB | >35dB | >30dB | >35dB |
| M2 Degradation | <10% | <10% | <10% | <10% |
| Clear Aperture | 3,4mm or others | 3,4mm or others | 2,3,4,5,8,10,12 or others | 3,4mm or others |
| Optical Power(Average) | 1,5,10W or Specify | 10,30,50W or Specify | 10,30,50,100W or Specify | 10,30,50W or Specify |
| Damage Threshold | 3.5J/cm2@ 10ns | 3.5J/cm2@ 10ns | 10J/cm2@ 10ns | 5J/cm2@ 10ns |
| Storage Temperature Range | -20-70℃ | |||
| Tunable Temperature Range | 10-30℃ | |||
|
|
