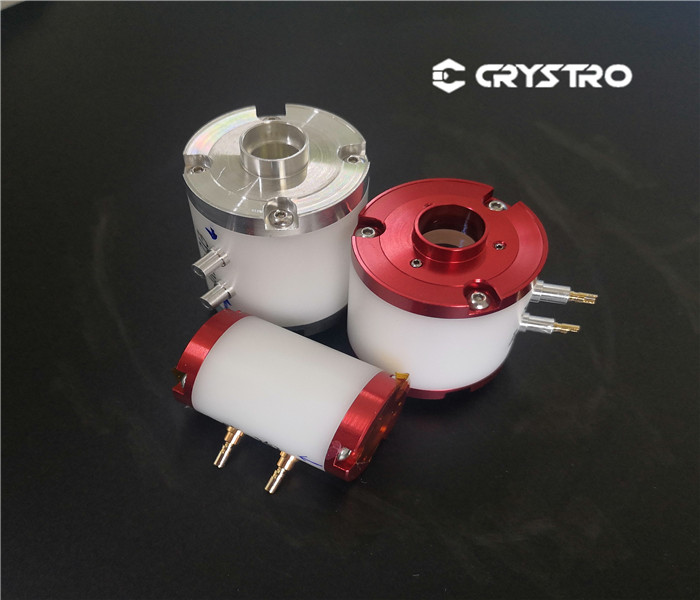

    1064nm Single Crystal BBO NLO Pockels Cell Q Switch for Cavity Dumping

    Ask Lasest Price
    Brand Name : Crystro
    Model Number : CR210224-
    Certification : SGS/ROHS
    Price : USD 50-500/pc
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 1000pcs per month
    Delivery Time : 1-5 weeks
    • Product Details
    • Company Profile

    1064nm Single Crystal BBO NLO Pockels Cell Q Switch for Cavity Dumping

    Q Switch Use Optical BBO Crystal NLO Crystals For Laser


    Beta Barium Borate (BBO) crystal is a Nonlinear Optical Crystal with a combination of unique features: wide transparency region, broad phase-matching range, large nonlinear coefficient, high damage threshold, wide thermal acceptance bandwidth and high optical homogeneity. High power BBO Pockels Cells from Crystro is usually used in the area of high power q switched Pulsed Laser.


    E-O Q Switch of EOQ series are transverse field devices. Low electro-optical coefficient of BBO results in high operating voltages. The quarter-wave voltage is proportional to the ratio of electrode spacing and crystal length. As a result, a smaller aperture device has lower quarter-wave voltage. However, even for 3mm aperture devices quarter-wave voltage is as high as 3.4KV@1064nm. Double crystal design is employed in order to reduce required voltages and allowing operation in half-wave mode with fast switching times.


    Advantages:

    Crystro can provide many different kinds of Pockels Cell.

    These EO Q-Switches have different characteristics and very good quality.

    These Pockels cell have different functions to meet different needs of customers in various fields.

    We have abundant stock and preferential price.

    All the High Power BBO EO Q Switch are quality guaranteed.

    We are China Origin Factory of BBO Pockels Cell for High Power.


    Applications:

    · High repetition rate DPSS Q-Switch
    · High repetition rate Regenerative Amplifier control
    · Cavity Dumping
    · Beam Chopper


    TypeCR351CR401CR352CR402CR353CR403
    Typical Dimensiondia25.4*35mmdia25.4*40mmdia25.4*35mmdia25.4*40mmdia25.4*35mmdia25.4*40mm
    of Pockels cell
    Dimension3X3X20mm3X3X25mm4X4X20mm4X4X25mm5X5X20mm5X5X25mm
    of Crystal
    Clear Aperturedia2.6mmdia3.6mmdia4.6mm
    Single pass optical transmission>98%>98%>98%>98%>98%>98%
    Extinction>1000:1>1000:1>1000:1>1000:1>1000:1>1000:1
    Ratio@1064nm(30db)(30db)(30db)(30db)(30db)(30db)
    λ/4 Voltage3500V2800V4900V3900V5900V4700V
    Capacitance<3.0pF<3.0pF<3.0F<3.0pF<3.0pF<3.0pF
    DamageThreshold750MW/cm²@1064nm.10ns,10Hz
