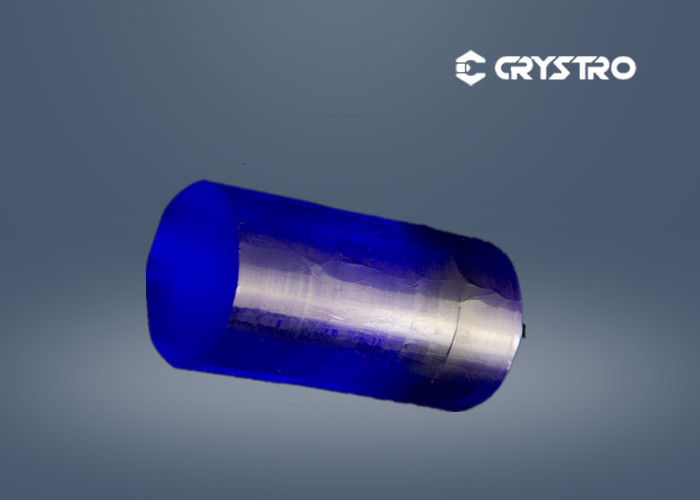

Co Spinel Co2+ MgAl2O4 Crystal For High Power Laser
Introduction:
Co:MgAl2O4,(Cobalt-doped magnesium aluminate spinel ) allow the generation of short nanosecond pulse with high peak power around the eye-safe wavelength of 1.5um,perfect for telemetry applications.
The absorption spectrum of Co2+-doped MgAl2O4 exhibited a broad absorption band in the wavelength range of 1200–1600 nm, which indicated that Co2+ ions substituted for the tetrahedrally coordinated Mg2+ ions in the MgAl2O4 lattice. Passive Q-switching of solid-state lasers with solid-state saturable absorbers is a very attractive Q-switching technique because it allows to develop compact and low cost laser sources of nano and sub nanosecond pulses far various applications
Features:
Suitable for 1540 nm eye-safe lasers
High absorption section
Negligible excited state absorption
High optical quality
Uniformly distributed Co
| Chemical formula | Co2+:MgAl2O4 |
| Crystal structure | Cubic |
| Lattice parameters | 8.07Å |
| Density | 3.62 g/cm3 |
| Melting Point | 2105 °C |
| Refractive Index | n= 1.6948 @1.54 µm |
| Thermal Conductivity /(W.cm-1.K-1@25°C) | 0.033 W |
| Specific Heat/ (J·g-1·K-1) | 1.046 |
| Thermal Expansion /(10-6 /°C@25°C) | 5.9 |
| Hardness (Mohs) | 8.2 |
| Extinction Ratio | 25 dB |
| Orientation | [100] or [111] < ±0.5° |
| Optical density | 0.1-0.9 |
| Damage Threshold | >500 MW/cm2 |
| Doping concentration of Co2+ | 0.01-0.3 atm% |
