    Epi Polish Ggg Gd3ga5o12 Single Crystal Substrates Low Optical Loss

    EPI Polish GGG Single Crystal Substrates


    Gallium Gadolinium Garnet (Gd3Ga5O12 or GGG) single crystal subatrates is used as substrates for liquid epitaxy growth of YIG or BIG film.

    GGG substrates is dedicated substrates for magneto optical film.


    GGG has been successfully applied in the magnetic refrigeration industry in the temperature zone below 20 k for market HeII flow and helium-nitrogen liquefaction pre-stage refrigeration.

    Crystro's GGG has low optical lossed(<0.1%/cm),high thermal conductivity(7.4W m-1K-1),High laser damage threshold(>1GW/cm2)


    CRYSTRO offers:
    SizeMax 4inch dia
    Thickness0.5mm, 1.0mm
    PolishingSingle or double side
    Orientation<111>,<100> ±2°
    Edge orientation accuracy<2°
    Edge Cuttingcustom
    Roughness<0.5nm

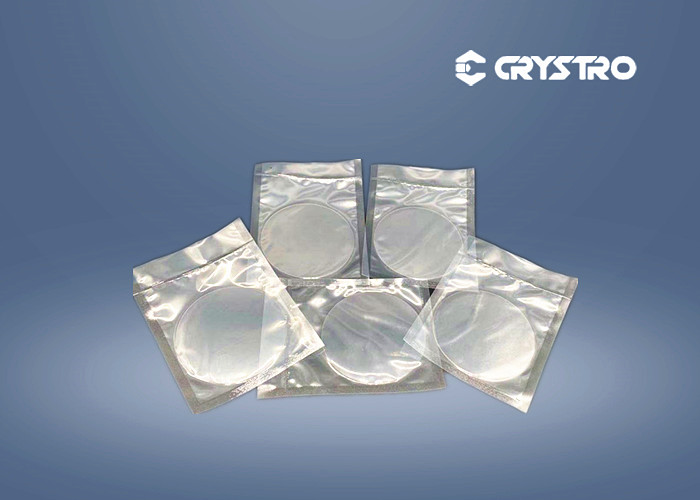

    Packagethousand grade clean room,vaccum bags


    Main Properties:


    Chemical FormulaGd3Ga5O12
    Lattic Parametera=12.376Å
    Growth MethodCzochralski
    Density7.13g/cm3
    Mohs Hardness8
    Melting Point1725℃
    Refractive Index1.954 at 1064nm

    document:


    GGG SGGG NGG Crystal.pdf


    Crystro has perfect automatic production machine, the current products are mainly concentrated in the YAG, TGG, TSAG,GGG ,LGS,Ce:GAGG ,Ce:YAG and Ce: LuYAG crystals.
    We also established a crystal research center and developed different kinds of crystals. Keep providing technical support and training for new applications and product development staffs.
