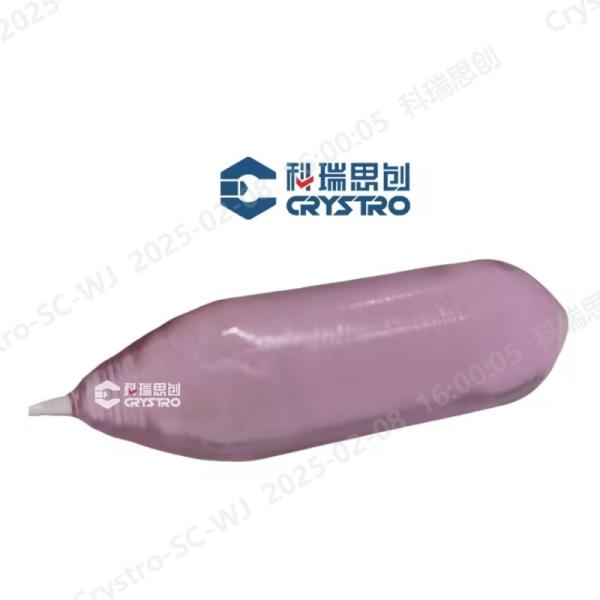

    ND:YLF Laser Crystal Rod used at 1047nm and 1053nm

    ND:YLF Laser Crystal Rod used at 1047nm and 1053nm

    Nd:YLF features an extremely large fluorescence line width, low thermal lensing effect and natural polarization. It is widely used in mode-locked lasers, continuous lasers and material processing fields. As an alternative medium to Nd:YAG, Nd:YLF is used to work in the near-infrared region, generating lasers at wavelengths of 1047nm and 1053nm. It can be applied in linearly polarized resonators, mode-locked lasers, diode-pumped Nd:YLF lasers and Ti:sapphire chirped pulse amplifiers.

    Main features:

    Natural polarization;
    Extra-wide fluorescent line width;
    High ultraviolet transparency;
    The thermal lensing effect is smaller than that of YAG crystals;
    Continuous lasers have a relatively low excitation light threshold;
    Suitable for medium repetition frequency, high average power Q-switched mode-locking operation;
    Effective single-mode operation, high power output and low beam divergence angle;


    Nd:YLF Properties

    Crystal StructureTetragonal
    Melting Point825℃
    Moh Hardness5
    Density3.95g/cm3
    Thermal Conductivity0.06W/cm/K
    Thermal Expansion Coefficient[100]方向:13×10-6/K
    [001]方向:8×10-6/K
    Young's Modulus7.5×1011dynes cm-2
    Tensile Strength3.3×108dynes cm-2
